GTOC

Global Trajectory Optimization Competition

• (bi)-annual challenge for aerospace engineers and mathematicians world wide
• Founded 2005 by Dario Izzo (ESA)
• Challenge: solve a nearly impossible problem of interplanetary trajectory design
• More information on the GTOC-portal

10th edition: GTOC-X The Problem

"In about ten thousand years from the present, humanity will reset its counting of years to zero. Year Zero will be the year when humanity decides the time is ripe for the human race to boldly venture into the galaxy and settle other star systems."

GTOC-X Problem Statement released 15th May 2019 by Jet Propulsion Laboratory (JPL)

Problem details

• 100 000 stars spread in a 32 kpa sphere
• Slow generational ships: 0.005c
• 90 MYr (=90 Million Years)
• Galaxy dynamics account for rotational curves anomalies
• Merit function rewards evenly spreading through the galaxy
• Exponential growth and spawning of new ships after settlement

The fleet

Objective Function

• $N$: number of settled stars
• $\eta$: settlement spatial distribution efficiency $(<1)$
• $\sigma$: $\Delta V$ efficiency $(>1)$

These terms are strongly interdependent and need to be carefully balanced to achieve top scores!

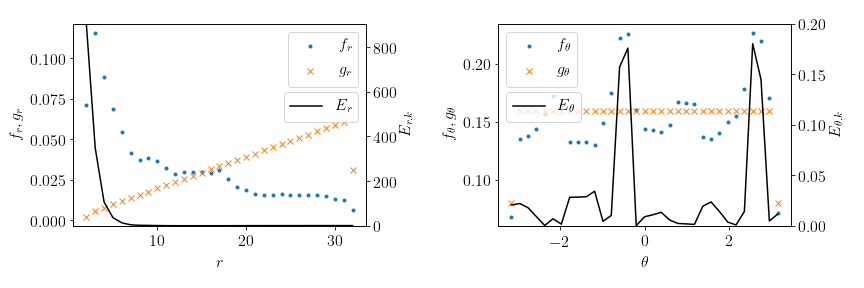

Settling the whole galaxy?

• Ideal target distributions: $g$
• $g_r$: ideal distance distribution is linear
• $g_\Theta$: ideal angular distribution uniform
• Realized star distributions of solution: $f$
• Abysmal efficiency: $\eta = 7.023 \cdot 10^{-5}$

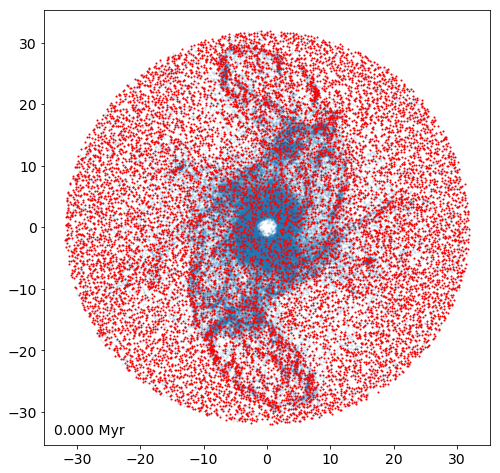

Optimal spatial distributions

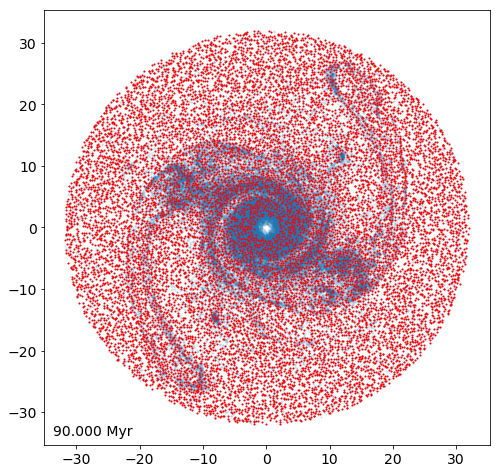

Poisson Disc sampling covers the whole galactic disc uniformly!

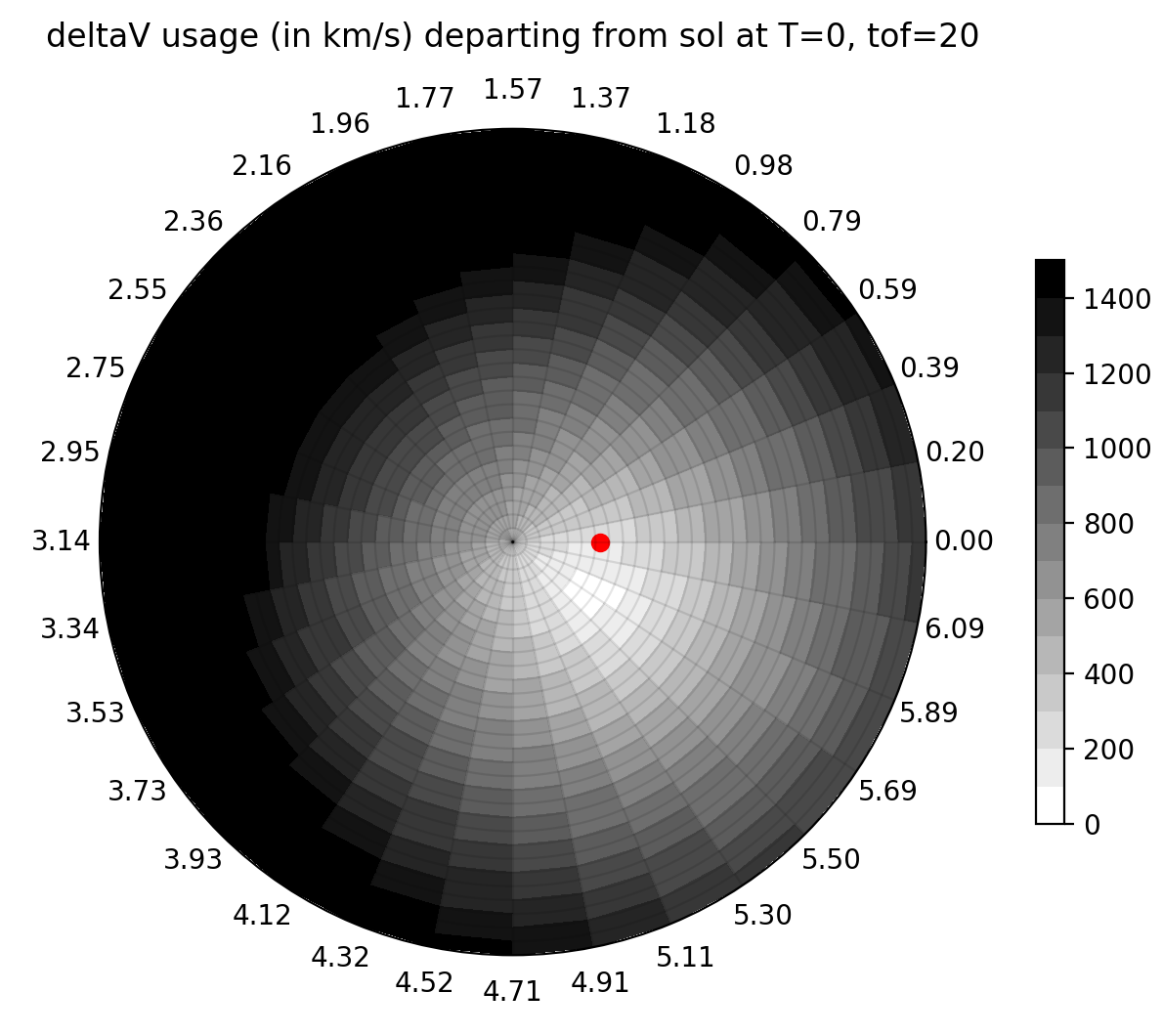

Stars at the border of the galaxy are very hard to reach

Optimal spatial distributions

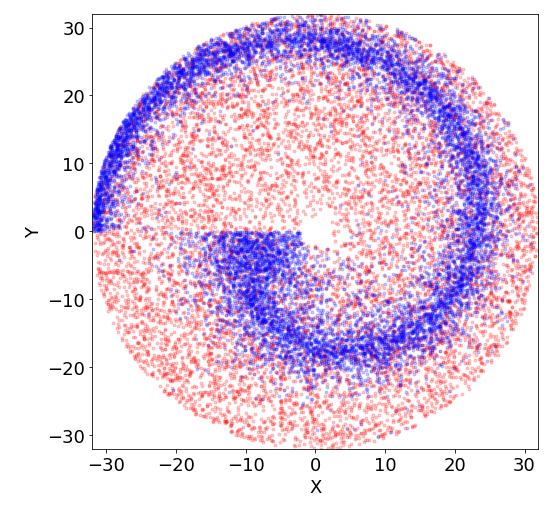

Observation: distributions $r$ and $\Theta$ are independent.

Blue dots and reds dots have the same distributions according to $r$ and $\Theta$

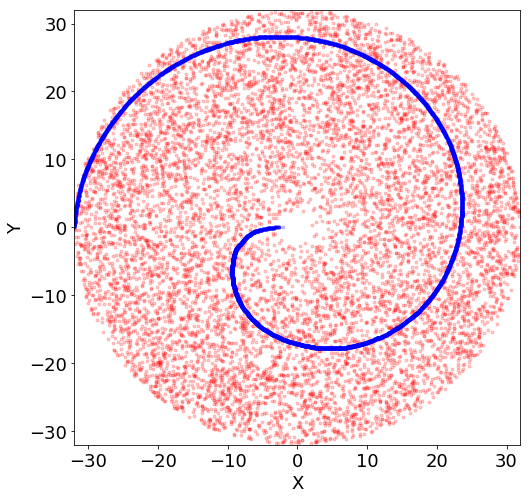

Unperturbed spiral is too narrow (low $N$)

Mother Ship design

The Mother Ships allows for intricate designs

• a) Basic impulsive leg
• b) Two stars - one impulse
• c) One star - two impulses

Two star - one impulse leg

1. Target star $s_1$ with first impulse at $T_1$ and time of flight $T_2$
2. Find a star $s_2$ that comes close to the ship after $T_3$
3. Minimize the distance to second target star by adjusting $T_1, T_2$ and $T_3$

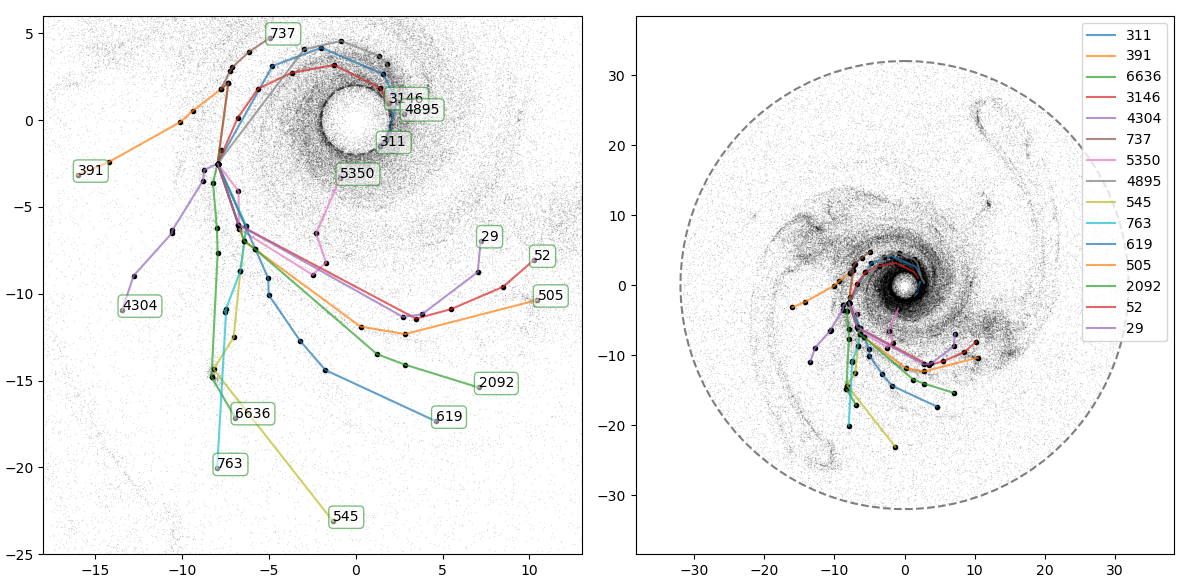

Mother Ship Trajectory Atlas

Handpicked trajectories for bootstrapping the tree search

Settlers

How to select stars?

• Cost function efficiency: $\eta$
• Not meaningful for ranking intermediary solutions due to its sensitivity
• Cost function time of flight: $T$
• Triggers exponential growth and clusters in center of galaxy (bad)
• Not economic by spending excessive $\Delta V$
• Cost function cumulative: $\Delta V$
• No pressure to expand fast and thus only few stars settled (bad)
• Oblivious to the target distribution

Solution?

Which stars make good candidates?

• Proximity according Euclidean distance can be suboptimal
• We deploy the orbital indicator to rank transfer potential between stars
• Position and velocities of stars $s_1, s_2$: $(r_1, v_1), (r_2, v_2)$
• Expected time of transfer: $\Delta T$
• Define:
  • $x_1 = \left[ \frac{1}{\Delta T} r_1 + v_1, \frac{1}{\Delta T} r_1 \right]$
  • $x_2 = \left[ \frac{1}{\Delta T} r_2 + v_2, \frac{1}{\Delta T} r_2 \right]$
• Orbital indicator $d(x_1, x_2) = \Vert x_2 - x_1\Vert_2$

D. Izzo, D. Hennes, L. F. Simões, and M. Märtens, “Designing complex interplanetary trajectories for the global trajectory optimization competitions” Space Engineering, pp. 151–176, Springer, 2016.

How to grow the trees?

• Trees grown independent from each other might
• overlap in nodes, merging/combining not straightforward
• collectively decrease $\eta$ even if individually grown to increase it!

Solution?

Grow the trees concurrently!

• Denote efficiency of a set of stars $\mathcal{S}$ with $\eta(\mathcal{S})$
• For each potential transfer to a star $s$ compute $\Delta \eta(\mathcal{S}) = \eta(\mathcal{S} \cup \{s\}) - \eta(\mathcal{S})$
• Consider only stars that fulfill: $$\Delta \eta(\mathcal{S}) \geq \frac{-0.01 - \eta(\mathcal{S})}{|\mathcal{S}| + 1}$$

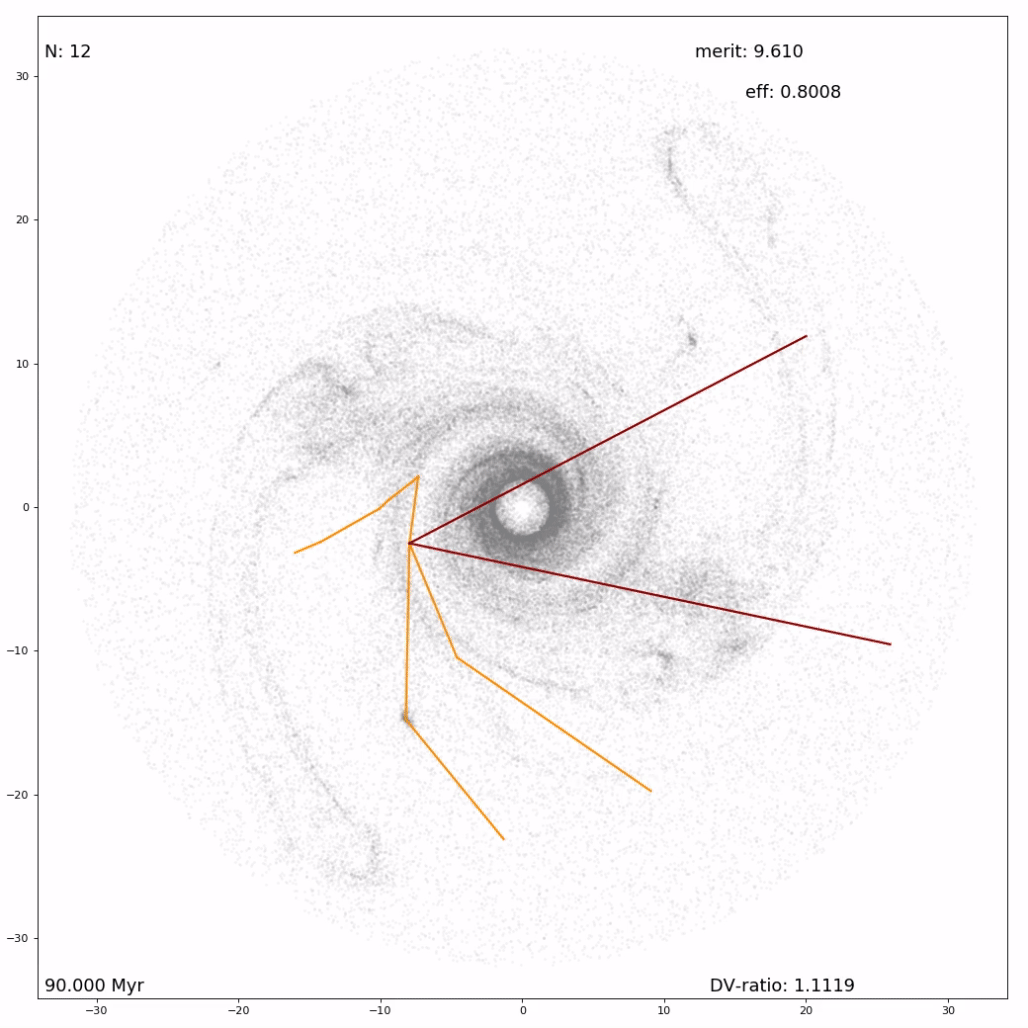

Concurrent Tree Search in action

Settlement Trees in all shapes

But what about $\Delta V$?

• All transfers during concurrent tree search have been optimized for time
• Consequently $\sigma \approx 1.18$ (bad)

Solution?

Let us fix our trees in post-processing!

$\Delta V$ Refinements

• Score counts at 90Myr
• we can take our time to reach the leaves!
• A star can spawn up to 3 settler ships
• deploy them all to make shortcuts!
• make new leaf nodes in the process!

Topological restructuring

• Analyse subtrees of depth 2
• Accounting for arrival-constraints, compute all possible subtrees and pick the best!
• One root node, 3 children and 9 grandchildren (at most)
• For a fixed root, there are $\binom{12}{3} = 220$ different triplets possible
• For each triplet, find best matching to remaining 9 nodes
• Recurse from leaves to root of tree

Effect of $\Delta V$ Refinements

Aggressive Refinements

• Reduction
• Find subset of stars to remove from tree with maximum gain in $\eta$
• Regrowth
• Decisions at early phase of tree search often suboptimal
• Sensitivity of $\eta$
• Better decisions possible with knowledge of the final settled regions
• Removing suboptimal branches and kick-starting tree search again
• Padding
• Send ships really slow to very close stars
• Take into settlement tree if gain in $\sigma$ outweights potential loss in $\eta$

Effect of aggressive refinements

Final solution

Let us put everything so far together!

The Final search

• Grid-search over handpicked fast and mother ship trajectories
• Both fast ships towards edge of galaxy
  • $r > 20$kpc, $-1 \leq \Theta \leq 1$
• One mother-ship for center and east part of galaxy
• $r < 10$kpc, $\Theta \approx 3$
• One impulse two stars: deploying 6 settlement pods
• Two mother-ships for south part of galaxy
• $r$ between $10$kpc and $20$kpc, $-3 \leq \Theta \leq -1$
• Two impulse one stars: deploying 2 settlement pods each
• Application of multiple refinement cycles
1. Reduction
2. Regrowth
3. $\Delta V$-Refinement
4. Padding

The Solution: Echoes

$N = 2652, \eta = 0.4678, \sigma = 1.6091, J = 1996.111$

Echoes in comparison to optimal Spiral

Spatial Distribution of Echoes

Leaderboard
